This is the SUPERLIFT Level 1 2 inch lift kit with Superlift shocks for the 2005-2010 or 2011-2016 Ford F-250/F-350 Super Duty 4WD
SUPERLIFT's Level 1 kits are moderate lift kits for the truck owners who want to retain the vehicle rake. Level 1 lift kits are specifically packaged for truck owners who are going to be loading the rear of the vehicle frequently & want the vehicle to be closer to ‘level’ after loading it.
SUPERLIFT's Level 1 lift kit provides a moderate lift kit for the front suspension, a rear block & U-bolt kit plus four (4) Superlift shock absorbers with specific compression & extension lengths specific for this application. Priced much less than traditional taller lifts, this is the simple solution for those wanting an economical & easy way to make room for taller tires for ground clearance or a plus-size the tire & wheel package on the vehicle.
In 2005, the front suspension on the Ford Super Duty four-wheel drive trucks was updated & converted to front coil springs. The 2005-2010 Ford F-250 Super Duty 4WD & the 2005-2010 Ford F-350 Super Duty 4WD are all equipped with a front solid axle with coil springs & radius arms. The rear suspension configuration is a solid axle with leaf springs.
In this level 1 lift kit, these spacer blocks provide the lift & guarantees the factory ride quality & handling. The spacer blocks are inserted between the axle & the factory coil mounts. Fabricated out of solid 0.25" steel, SUPERLIFT blocks are a super strong fabricated design, laser cut, CNC formed & professionally welded by hand to perfectly to the factory coil mount & axle seat.
This lower mount method does not preload the factory coil spring (which would degrade ride quality). No modifications to factory-installed parts are required. The all components are easily removable should the vehicle need to be returned to stock
This SUPERLIFT kit addresses all of your 2 inch Level 1 lift kit needs in terms of product quality, durability, craftsmanship & price. It includes everything you need to lift your Ford Super Duty.
Included in this system is a set of four (4) Superlift hydraulic shocks absorbers. Superlift shock absorbers are designed to provide excellent ride quality, durability, and longevity. They feature 10-stage, velocity-sensitive valving for maximum control on or off-road without sacrificing a comfortable ride. Shock resistance is continually adjusted, depending on the terrain and vehicle speed.
Features:
- Strong 10.9-grade metric hardware & LocTite thread locking compound included
- Laser cut, CNC formed steel coil spacers provide lift
- Spacers mate perfectly to the factory coil mount & axle seat
- 100% bolt-on super-simple installation. Installs with basic hand tools.
- Maintains factory ride quality
- Ideal for restoring height lost from a heavy front bumper, winch/bumper combo or snow-plow.
- Easily removable should the vehicle need to be returned to stock.

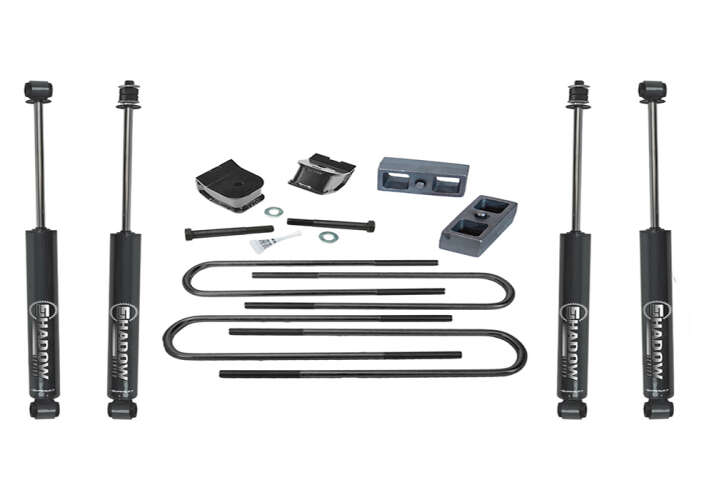

- Front: Fabricated spacer block (1 Pair); thread locking compound (1); 10.9 Grade, 14mm bolts (2); washers (2); Superlift Shocks (2).
- Rear: Rear block kit; steel block plates (2); U-bolts (4); heavy-duty flat washers (8); U-bolt long nuts (8); tie bolts & nuts (4); Superlift Shocks (2).
NOTE: Lift spacer block thickness is 1 to 1 ratio due to the suspension geometry.
