3in Ford Lift Kit | Diesel or V-10

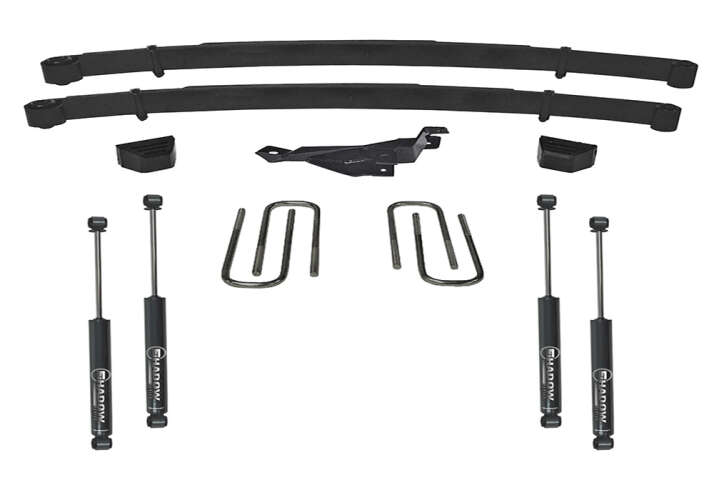

3in Ford Lift Kit Gallery

3in Ford Lift Kit

(1)
Starting At*: $1,000.00
FREE Shipping on ALL ORDERS!*
*within the contiguous US; ground shipments only.
Year: Year
Make: Make
Model: Model
Find a Dealer CALL 800-551-4955
CALL 800-551-4955
What is this?View Complete Details
  • This is a complete front Superlift leaf spring leveling kit for the 2000-2005 Ford F-250/F-350 4wd V-10 and diesel engine
  • Provides 3” lift height
  • Includes track bar bracket, front and rear Superlift shocks
What does it include?
  • Front leaf springs, track bar bracket, shocks, and all hardware required specific to the 2000-2005 4wd Ford Excursion.
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
California Residents: Prop 65
WARNING

ATTN STATE OF CALIFORNIA CONSUMERS

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Features:

  • Track bar relocation bracket prevents steering wheel "kick".
  • Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory real travel stops are relocated.
  • Rear lift via 3" blocks.
  • Front and rear Superlift shocks included.

NOTE: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option's list or call our technical support line for additional details.

Tire Wheel  Backspacing Offset
33 x 12.5 17 x 9 4.5 -



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 6 hours
  • Difficulty level: 3 of 5

NOTE: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8" blocks without top mount overloads. If your vehicle is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option's list or call our technical support line for additional details.

Download Install Guide
Reviews
1 Total
John S. Verified Buyer
4.5/5
17 March 2020
It could be useful to add some more details into the installation instructions. For the most part, one is going to be able to figure it out on their own. But, in the case of the front leaf spring removal and replacement, the directions are pretty vague as to what all is necessary to remove the front eyelet bolt. Not a huge deal, and we got through it just fine. Just a point of interest.
