Name: Superlift Lift Kit | 4in Ford Spacer Lift Kit 2017 or Newer F250/F350 4WD
Brand: Superlift

4in Ford Lift Kit | Spacer Lift Kit

Starting At*: $560.00

FREE Shipping on ALL ORDERS!*
*within the contiguous US; ground shipments only.

Find a Dealer CALL 800-551-4955

CALL 800-551-4955

Learn More

What is this?View Complete Details

This is a complete bracket style suspension Lift Kit for the 2017 and newer Ford F-250 / F-350 Super Duty 4WD – all engines
Provides 4” lift height

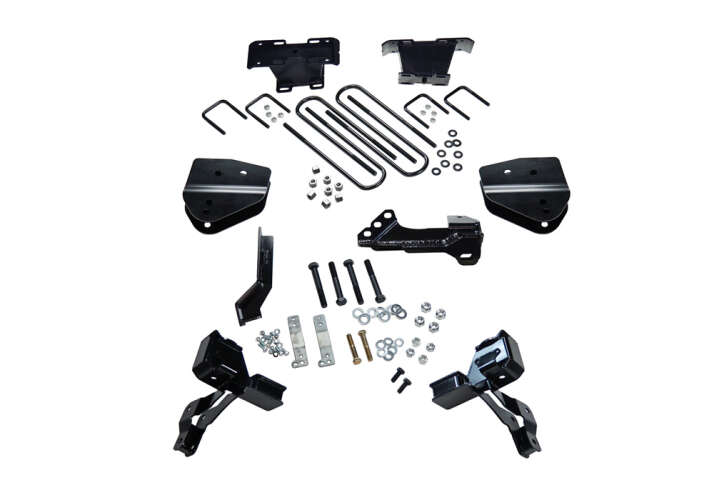

Includes coil spacers, rear block and u-bolt kit, track bar bracket and related brackets.

What does it include?

Front coil spring spacers, shock brackets, track bar bracket, radius arm drops, brake line brackets, steering stabilizer bracket and all hardware needed for installation
Rear fabricated blocks with ubolts.
Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift's engineers set out to design a complete, bolt-on system for the 2017-2021 Ford F-250 and F-350 Super Duty 4WD’s that can be purchased on a budget. This Super Duty lift kit integrates the coil spacer, shock relocation, and the bump stops spacer all into one bracket for a super easy install.

The other front components also included are a track bar relocation bracket to keep the axle centered, radius arm drop brackets to maintain the proper caster specifications, and brake line relocation brackets. The rear lift is achieved with a new design fabricated rear block that allows the removal of the stock block.

NOTE: If equipped with a 2 piece rear drive shaft, a carrier bearing spacer is required. Part # 9649

NOTE: If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11724

NOTE: GAS Engine equipped trucks will require exhaust modifications .

Tire	Wheel	Backspacing	Offset
35 x 12.5	17 x 9	4.5	-
35 x 12.5	18 x 9	4.5	-
35 x 12.5	20 x 9	4.5	-
35 x 12.5	20 x 10	-	-12 to -24
37 x 12.5	17 x 9	4.5	-
37 x 12.5	18 x 9	4.5	-
37 x 12.5	20 x 9	4.5	-
37 x 13.5	20 x 10	-	-12 to -24

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation time: 4 hours
Difficulty level: 2 of 5

NOTE: If equipped with a 2 piece rear drive shaft, a carrier bearing spacer is required. Part # 9649

NOTE: If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11724

NOTE: GAS Engine equipped trucks will require exhaust modifications .

Download Install Guide

DOES IT WORK ON A DUALLY?

The kit work for the front on a dually. The primary issue with dually trucks is the rear u-bolts. We have to confirm axle tube diameter and length required and see if we have a u-bolt available, or if they will have to be made at a shop near you.
