6.5 inch 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks

6.5in 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks Gallery
6.5in 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks Gallery 2
6.5in 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks Gallery 3
6.5in 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks Gallery 4
6.5in 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks Gallery
6.5in 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks Gallery 2
6.5in 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks Gallery 3
6.5in 07-13 Chevy/GMC Lift Kit w/ Fox Coilovers and Rear Shocks Gallery 4

6.5in 07-13 Chevy/GMC Lift Kit | Cast Steel Control Arms w/ Fox Coilovers and Rear Shocks

Sorry, there are currently no products in this category that fit your .

However, there are products in the following categories that do:
Suspension Kits

For more information, please click here
Suspension Components

For more information, please click here
Steering Components

For more information, please click here
Shocks

For more information, please click here
Rear Adjustable Track Bar| Jeep TJ

For more information, please click here

This product is universal. Please see benefits section for more information.
Find a Dealer CALL 800-551-4955
CALL 800-551-4955
What is this?View Complete Details

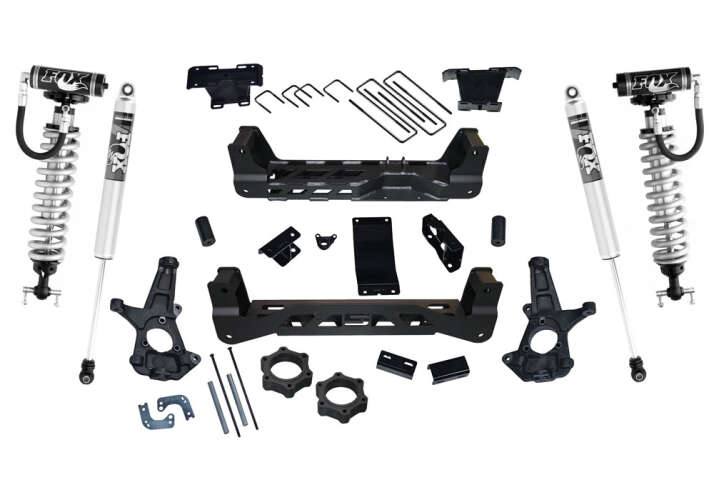

  • This is a complete knuckle style, FOX Coilover lift kit for the Chevy/GMC Silverado/Sierra 2WD or 4WD
  • Provides 6.5” lift height
What does it include?
  • FOX Coilovers and rear shocks
  • All brackets, cross-members, steering knuckles, strut spacers, rear block and u-bolt kit, and hardware specific to the 2007-2013 Chevrolet Silverado or GMC Sierra 1500
  • Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
California Residents: Prop 65
WARNING

ATTN STATE OF CALIFORNIA CONSUMERS

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Superlift’s  6.5 FOX coil over lift kit for the 2007-2013 Chevrolet Silverado or GMC Sierra 1500 4WD and 2WD is a great way to add height to your overall GM 1500 appearance. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.  This 6.5 inch Lift kit for the GM 1500 Pickup is a complete replacement knuckle kit.

Superlift’s geometry, from steering timing and linkage angles to driveshaft and CV axle operating angles, yields optimal component service life and exceptional drivability. Our Lower Control arm cross-members are true to their height and are a one-piece, full-width, high-clearance design made of .25” steel plate.

Features:

  • FOX Coilovers and rear shocks
  • Direct bolt-on (No Weld Design)
  • Adds clearance for up to 35” tires
  • Heavy duty, ¼” plate lower control arm crossmembers



Benefits:

  • Best in class ride quality and performance.
  • Retains OEM caster and camber alignment specifications
  • Maintains ride quality and handling characteristics
  • Aligns to OEM Specifications
  • Designed using Original Equipment (OE) CAD data for accuracy

NOTES:

  • Not recommended for AWD models
  • Does not fit models with Auto Ride or Auto leveling
Tire Wheel Backspacing Offset
35 X 12.5 18 x 9 4.3 -6
35 X 12.5 20 X 9 - +12 to +18
305/65 R18 18 x 9 - +12 to +18
305/55 R20 20 X 9 - +12 to +18



IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers' wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

  • Installation time: 7-8 hours
  • Difficulty level: 3 of 5



NOTE: Not recommended for AWD models

NOTE: Does NOT fit Auto Ride or Auto Leveling models

NOTE: Only fits vehicles with CAST STEEL Control arms

Download Install Guide

WHAT IS THE DIFFERENCE BETWEEN SUPERLIFT AND BILSTEIN SHOCKS?

Superlift shocks are twin tube, velocity sensitive hydraulic shocks. Bilstein shocks are a mono-tube gas pressurized shock. The Superlift shocks are coated with a white paint; the Bilstein shocks are a brushed steel body with a nickel and clear zinc finish. Bilstein shocks are more tuned for the application and offer more precise valving.

HOW TO IDENTIFY THE TYPE OF CONTROL ARMS, YOUR 2014-2018 GM 1500 IS EQUIPPED WITH.

From 2014-2016 Chevrolet Silverado and GMC Sierra 1500 Pickup trucks were available with three different equipped control arm set ups.  During this time frame, GM produce those trucks with 2 different knuckles – Aluminum and Steel.  Each style knuckle contain a different ball joint size.

Superlift produces a kit for each set up for both 6.5 and 8 Inch Lift Kits.

2007-2013 – Cast Steel Control arms (K162)

2014-2016 – Cast Steel Control Arms (K160)

2014-2018 – Stamped Steel or Aluminum (K161)

Please refer to picture in order to identify which control arm your GM 1500 pick up has.
